Integrated 3D PCB and Mechanical CAD Environment

Upgrade your electronic design process

Do you struggle with expensive annual costs, not owning a perpetual license or inferior functionality?
Try Pulsonix today as an easy solution

Here are just some of the Pulsonix highlights...

Schematic Capture

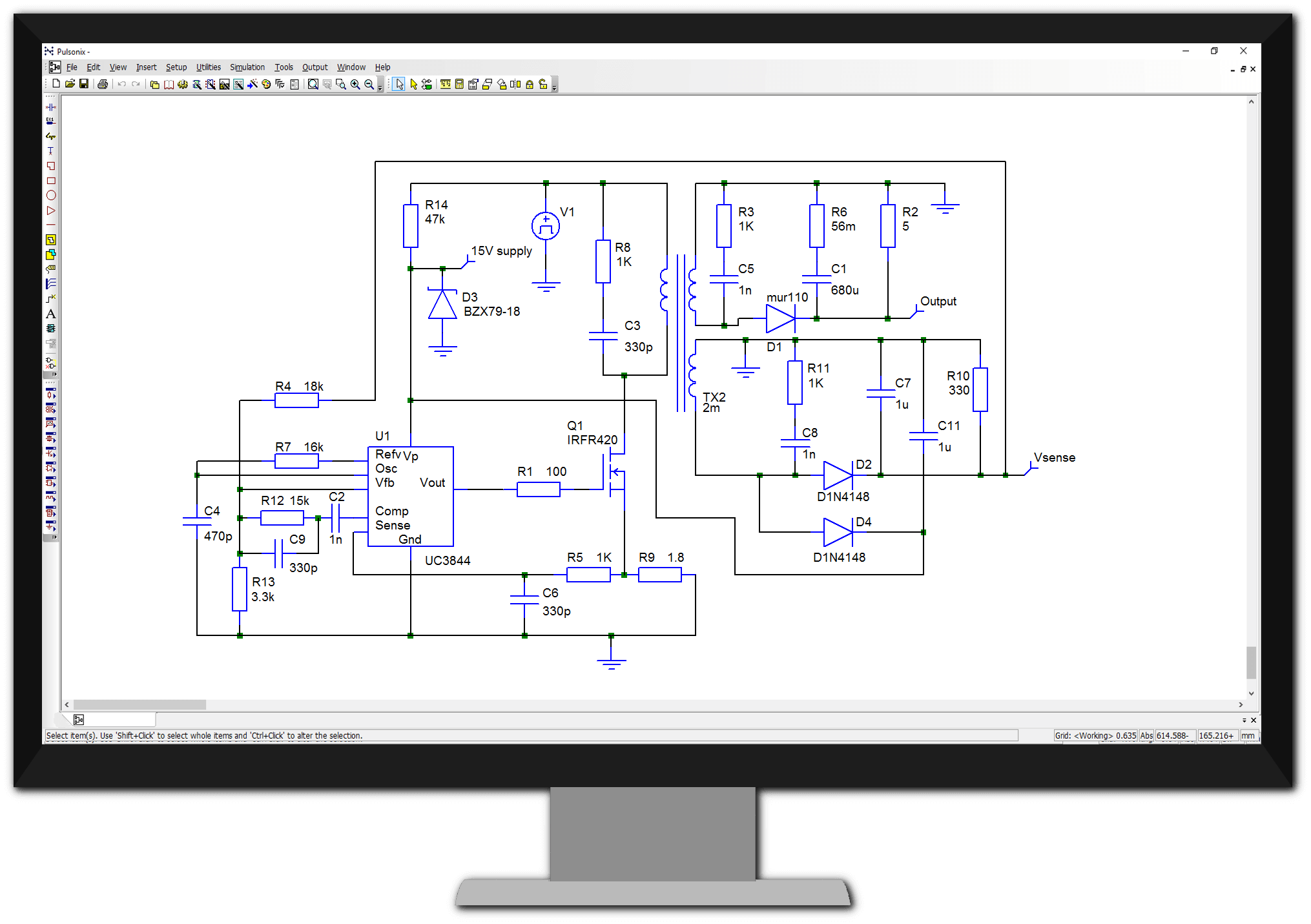

Schematic Capture Environment Image

Easily create Schematic designs using the feature rich toolset within the Pulsonix Schematic editor. Use Pulsonix SCM and the built-in Spice library to simulate your design ensuring electrical correctness at all stages of your designs. Buy additional Schematic only seats for a cost-effective solution.

PCB Layout

PCB Design Environment Image

Sophisticated design rules enable all aspects of the PCB design to be managed and created. Easy to use routing and layout features including push-aside routing and component placement and full assembly variants are all included as standard in Pulsonix.

High-Speed Design

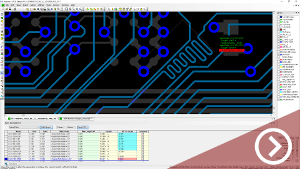

High-Speed Design Image

Easy to define and powerful High-Speed design tools including Constraint Manager, Differential Pair routing, dynamic serpentine routing, pin package lengths, intelligent path definition and online length displays to help with DDR, PCI express and USB designs.

Flexi-Board Support

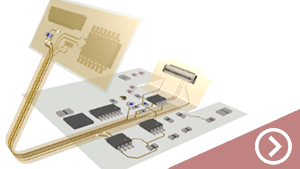

Chip-On-Board Image

Advanced technology to support Flexi-rigid designs, Chip-On-Board and Embedded Components including embedded resistors, capacitors, thinned-dies and planar transformers.

3D View & MCAD Outputs

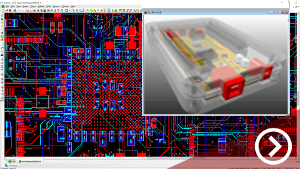

3D and Mechanical CAD output Image

Real time 3D View of your design in the built-in Pulsonix STEP preview engine. Add cases and enclosures, run clash detection in real-time. Additional Bi-directional STEP, IDF and DXF exports to your Mechanical CAD system.

Pulsonix Vault

Pulsonix Vault Manager and Setup Image

Full access control, revision history and saved search capability of Pulsonix designs, libraries and technology files in the Pulsonix Vault provides you with total control and in an audited environment.

Discover why thousands of companies around the world choose Pulsonix

"We had no idea how much work could be reduced, the maintenance process was enhanced and we are now much more productive. Furthermore, the quick, professional and qualified support contributed to get the optimum out of Pulsonix."

Peter Weinheimer - Deutsche Bahn

Request a Free Trial

All the features of the full edition and only limited to 100 component pins.

Request Pulsonix for Free
