The Define Sine Source page can be found on the Define Source dialog.
Use it to define the values for a Sine Wave Generator device.
Shortcuts
Default Keys: F7
Command: Edit Spice Value/Model
How To Define A Sine Source
Use the Define Source dialog to edit a source device. Click on the Sine tab.

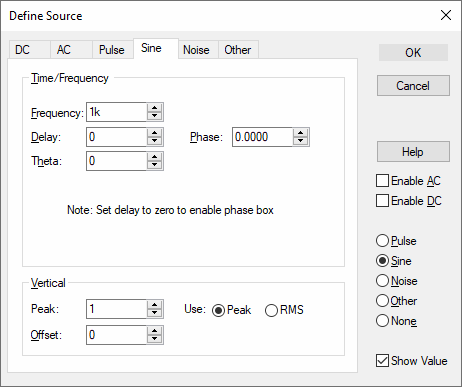

The following dialog will be displayed:
The shape of the waveform is described by:
0 to delay:                 offset
Delay to stop time:    offset + peak.exp(-(t-delay).theta)).sin(2.p.freq.(t+delay))
Notes:
Phase is implemented using a negative delay. If a positive delay is specified, the phase control will blank out.
Frequency is defined in Hz. If set to zero, the frequency will be set to 1 / (stop\_time squared). Where stop\_time refers to the end time of the Transient Analysis.
Delay is defined in seconds.
Theta is the damping factor parameter which controls decay, defined in tenths of a second.
