Use this option to display the whole Differential Pair Chains defined.
Shortcuts
Menu: Setup
Default Keys: T
Command: Technology
Command: Create Differential Pair
Locating this option
Available from: Setup menu > Technology option > Differential Pairs tab

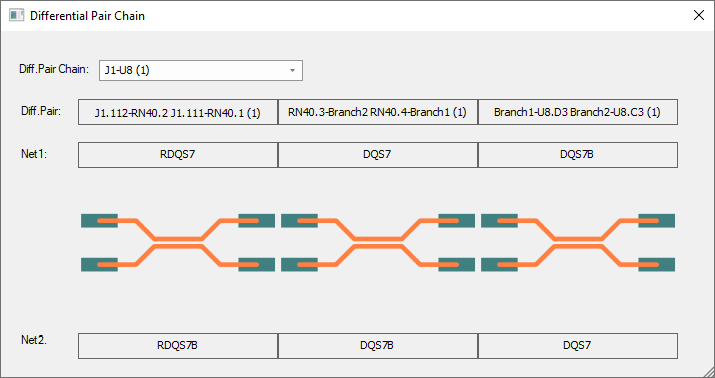

Using the Differential Pairs dialog
Every chain defined for the Differential Pair nets are shown in detail for the selected chain.
